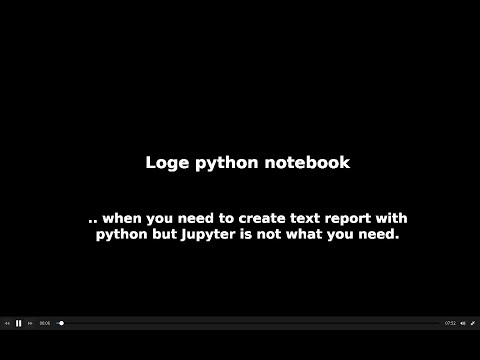

Loge python notebook¶

Easy and fast dynamic report generation with Python 3

About Loge¶

What Loge is¶

Loge is a tool to create interactive report for scientific calculation you made with python script. You can use Loge to create reports ready for publication. Loge use .py file format. All additional Loge’s syntax is hidden inside python comments so the python engine does not see it, this is still python standard code file you can execute. Loge comments is based on easy to use Markdown language syntax. Loge has its own code editor and file browser included but you can also use your favorite editor to edit script file and get live report preview when file changed.

Loge is based on Python3 and pyqt5.

Loge is continuation of SeePy project. SeePy is based on Python2 and pyqt4. SeePy project is is no longer developed.

Mission¶

The mission of the project is to provide a simple and practical tool that will interest engineers to use Python language in their daily work.

Stage of development¶

At the moment Loge is available on PyPI as beta stage software.

Source code¶

Source code git repository is available on Bitbucket.

License¶

Loge is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

Loge is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with Foobar; if not, write to the Free Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA.

Development team¶

The current co-lead Loge developers:

Copyright (C) 2017-2022 Lukasz Laba <lukaszlaba@gmail.com>
Copyright (C) 2017 Albert Defler <alnw@interia.eu>

Installing¶

Loge requirements¶

To run Loge the following Python environment must be installed

1 - Python 3

2 - Minimal non-standard python dependencies

pyqt5

mistune

pillow

3 - Optional non-standard python dependencies

unum - SI unit calculation

matplotlib - matplotlib and LaTex display

svgwrite - SVG graphic display

tabulate - working with nice looking text table

dxf2svg - dxf file drawing display

anastruct - 2D structure analysis

How to run Loge?¶

Loge is available through PyPI and can be install with pip command. To install Loge with minimal requirements use pip by typing:

pip install loge

To make all features available install optional dependencies by taping:

pip install unum matplotlib svgwrite tabulate dxf2svg anastruct

To run Loge use command loge from your system command line. Command python -m loge works as well.

On Windows system you can also find and run loge.exe file in ..\Python3\Scripts folder. For easy run make shortcut for this file.

If new version of Loge package available upgrade it by typing

pip install --upgrade loge

OS compatibility¶

Windows (10) and Linux (xubuntu) tested.

Features¶

Here is extra syntax you can use in your python script to get Loge report

Comments¶

One line comment¶

(indentation acceptable)

#! Your Markdown comment

Multi line comment¶

(indentation not acceptable)

#!
'''
Your miltiline Markdown comment

you can write long text
'''

Variable with line comment¶

(indentation acceptable)

a = 30 #! Comment

or if a value defined use

a #! Comment

Calling variable value in Loge comment¶

You can call variable value in comments using %(name)s as it show below

a = 1
b = 2
#! Values are %(a)s and %(b)s

or you can use val_name and var_name

a = 1
b = 2
#! Values are val_a and val_b
#! Variables are var_a and var_b

Python code¶

(indentation not acceptable)

Showing python code used in your script¶

You can show multi-line python code from your *.py script as it show below

#%code
text = 'Python is cool'
for i in text:
    print i
#%

or short syntax for one line code

text = 'Python is cool' #%code

Images from file¶

(indentation acceptable)

Showing image in report¶

You can show any image file from directory where your *.py script is stored. Most image file format allowed (including SVG).

#%img image.jpg

Showing dxf file¶

You can also show graphic from dxf file. Python dxf2svg package converter is used to display dxf.

More about dxf2svg at https://bitbucket.org/lukaszlaba/dxf2svg

#%img drawing.dxf [framename] [500]

The integer number is image size you will get in report.

Embedding image from clipboard¶

The code editor toolbar include feature that allow embed image directly from clipboard. It transform clipboard data into image file and is save in the same location where the loge script is located. After image file is saved #%img commend is added to script.

Image from PIL / PILLOW¶

(indentation acceptable)

Displaying PIL.Image instance in report¶

You can display image from PIL.Image instance using #%pil syntax.

from PIL import Image
imagefilepath = '/home/.../someimage.jpg' #<<<< Image path -
im = Image.open(imagefilepath) #%pil
im2 = im.resize((200,200)) #%pil
im3 = im.rotate(10) #%pil
im #%pil

Matplotlib¶

(indentation acceptable)

Showing Matplotlib figure¶

You can add to Loge report Matplotlib figure - matplotlib.pyplot instance is needed

import matplotlib.pyplot as plt
import numpy as np
t = np.arange(-1.0, 2.0, 0.01)
s1 = np.cos(9*np.pi*t) + 3 * t ** 2
plt.plot(t, s1)#%plt
plt.clf()

or you can use:

plt #%plt

Anastruct¶

(indentation acceptable)

Showing Anastruct figure¶

Anastruct is a python package that allow analyse 2D frames and trusses. It determine the bending moments, shear forces, axial forces and displacements. You can add Anastruct figures to Loge report. Anastruct figures base on Matplotlib.

More about anastruct https://anastruct.readthedocs.io/ and https://github.com/ritchie46/anaStruct

from anastruct import SystemElements
ss = SystemElements()
import matplotlib.pyplot as plt
ss.add_element(location=[[0, 0], [3, 4]])
ss.add_element(location=[[3, 4], [8, 4]])
ss.add_support_hinged(node_id=1)
ss.add_support_fixed(node_id=3)
ss.q_load(element_id=2, q=-10)
ss.solve()

fig = ss.show_shear_force(show=False)
plt #%plt
plt.clf()

Tabulate table¶

(indentation acceptable)

Showing Tabulate table¶

More about tabulate at https://github.com/astanin/python-tabulate

from tabulate import tabulate
table = [["spam",42],["eggs",451],["bacon",0]]
headers = ["item", "qty"]
tabulate_tab = tabulate(table, headers, tablefmt="fancy_grid") #%tab

or you can use:

tabulate_tab #%tab

LaTex¶

(indentation acceptable)

Rendering LaTex syntax from comment¶

#%tex s(t) = \mathcal{A}\mathrm{sin}(2 \omega t)

you can call variables

a = 23
#%tex f(x) = %(a)s * y

Rendering python code as LaTex syntax¶

pi = 3.14 #! - pi value
r = 40 #! - circle radius
# from formula
Area = pi * r ** 2 #%tex
Area #! - what we get

Rendering LaTex syntax from python string¶

LaTexString = '\lim_{x \to \infty} \exp(-x) = 0'
LaTexString #%stringtex

SVG graphic¶

(indentation acceptable)

Rendering SVG syntax from python string¶

svgsyntaxstring='''
<svg>
    <circle cx="30" cy="30" r="20" fill="tan" />
</svg>
'''
svgsyntaxstring #%svg

Rendering SVG `svgwrite.drawing` instance from `svgwrite` package¶

More about svgwrite at https://svgwrite.readthedocs.io

import svgwrite
svg_document = svgwrite.Drawing()
svg_document.add(svg_document.rect(size = (40, 40), fill = "tan"))
svg_document #%svg

Raport interaction¶

(indentation acceptable)

Interactive python variable changing¶

a = 120 #! - this is not interactive variable in your report
b = 30 #<< - this is interactive variable in your report click it to change it
#! the values are %(a)s and %(b)s

You can get other display effect using #<<, #<<< or #<<<<

b = 30 #<< your comment
b = 30 #<<< your comment
b = 30 #<<<< your comment

Special cases

If your variable value is True or False then interactive CheckBox will be displayed on report when #<<< or #<<<< used. When you click CheckBox the value will change to opposite bool value.

dosomething = True #<<<< Do something
if dosomething:
    a = 1
    b = 3
    c = a + b #%requ
    #! Done ...

If you variable name has ‘filepath’ or ‘dirpath’ in it name then file or directory browse dialog will be open after clicked.

image_filepath = '/home/image.ipg' #<<<< Image file path to open -
image_filepath #! - this is your path

search_dirpath = '/home' #<<<< Directory to scan for data -
search_dirpath #! - your is your path

Interactive python variable selecting from list¶

If your variable is equal some list element

list = [1, 2, 3, 4]
variable = list[1]

You can make this choice interactive

list = [1, 2, 3, 4]
variable = list[1] #<< - select variable value

You can use #<<, #<<< or #<<<< to get different display effect

list = [1, 2, 3, 4]
variable = list[1] #<< - select variable value
variable = list[1] #<<< - select variable value
variable = list[1] #<<<< - select variable value

Examples of use

Example 1

car_list = ['volvo', 'toyota', 'saab', 'fiat']
your_car = car_list[1] #<<< - select your car
#! Your car is %(your_car)s .

Example 2

material_list = ['steel', 'concrete', 'plastic', 'wood']
material = material_list[1] #<<<< Material is -
#! The %(material)s will be used to make something.

Example 3

temperature_range = range(10,30,1)
room_temperature = temperature_range[2] #<<<< Select the room temperature -
#! Temperature %(room_temperature)s Celsius degree selected.

Mathematical expressions and equations¶

(indentation acceptable)

You can add to Loge report expressions and equations with optional comment using #%requ or #%equ (first give result value, second not)

a = 1
b = 3
c = 3*a + 4*b #%requ - your comment
c = 3*a + 4*b #%requ
c = 3*a + 4*b #%equ - your comment
c = 3*a + 4*b #%equ
3*a + 4*b #%requ - your comment
3*a + 4*b #%requ
3*a + 4*b #%equ - your comment
3*a + 4*b #%equ

Python code is format to look more natural

when you working with math package the math. prefix be deleted
python power sign ** is change to ^

import math
math.pi #%equ
math.sin(1) #%equ
2**2 #%equ

When you working with SI units using Unum package

u.m change to [m] e.t.c
(mathexpression).asUnit() change to mathexpression

from unum import units as u
5 * u.m + 10 * u.mm #%requ
(5 * u.m + 10 * u.mm).asUnit(u.km) #%requ

Loge timer¶

You can run timer option to run your script regularly every specifed time space. This option is available from Timer toolbar (time unit in those toolbar is second). Here is a script that show current time on report - try use timer for it.

import time
timestring = time.strftime("%Y-%m-%d %H:%M:%S", time.gmtime())
#! ##The time is val_timestring

If you want to make timer on when script is open specify timer parameter in script:

import time
timestring = time.strftime("%Y-%m-%d %H:%M:%S", time.gmtime())
#! ##The time is val_timestring
#%timer 300 ON

Specified time is 300 millisecond and timer will be ON.

If you want set timer but not make it ON after opening the script:

import time
timestring = time.strftime("%Y-%m-%d %H:%M:%S", time.gmtime())
#! ##The time is val_timestring
#%timer 300 OFF

Saveas with dependences¶

If you use saveas option Loge will save copy of your python script and other files if those names are linked inside script code(for example images you has linked with #%img).

Code editor Greek letters usage¶

You can simply paste the needed unicode characters into your code. For Greek letters there is a build in feature included. To write Greek letter, write its roman equivalent and when the cursor is after the letter use Ctrl+G shortcut. Here is the list of available Greek letters.

_images/greek_roman_equivalent.png alt text

Loge in action¶

Here you can find a few Tebe use case examples - it does not contain all available features. There are other example scripts and tutorial included in Tebe.

Circle area¶

Python code:

import math

#! ### Circle Area calculation

#%img action_circle_fig_1.png

#! For input data

r = 89 #<< - circle radius

Area = math.pi * r**2 #%requ - formula that everyone know

#! So, the area of circle with var_r is val_Area.

Loge output report:

Circle Area calculation¶

_images/action_circle_fig_1.png Alt text

For input data

r = 89 - circle radius

Area = pi * r^2 = 24884.5554 - formula that everyone know

So, the area of circle with r = 89 is 24884.5554 .

Matplotlib figure¶

Python code:

import matplotlib.pyplot as plt
import numpy as np

t1 = -1.0 #! - start argument value for figures plots
t2 =  2.0 #! - end argument value for figures plots

t = np.arange(t1, t2, 0.01)

#! Figure 1
s1 = np.cos(9*np.pi*t) + 3 * t ** 2 #%equ
plt.figure(1)
plt.plot(t, s1) #%plt
plt.clf()

#! Figure 2
s2 = np.sin(18*np.pi*t**2)
plt.figure(2)
plt.plot(t, s2)
plt #%plt
plt.clf()

#! All figures in one
plt.figure(4)
plt.plot(t, s1)
plt.plot(t, s2)
plt #%plt
plt.clf()

Loge output report:

t1 = -1.0 - start argument value for figures plots

t2 = 2.0 - end argument value for figures plots

Figure 1

s1 = np.cos(9*np.pi*t) + 3 * t ^ 2 - figure formula

_images/action_matplotlib_1.png Alt text

Figure 2

s2 = np.sin(18*np.pi*t^2) - figure formula

_images/action_matplotlib_2.png Alt text

All figures in one

_images/action_matplotlib_3.png Alt text

SI unit calculation¶

SI unit calculation can by made with Unum pagkage. Here you can find Unum documentation. Please note that Loge has some special features that help diplay Unum - you can find it in Features page.

Python code:

import unum.units as u

#! Stress calculation

#! Input data:
F = 1000.0*u.N #<< - force value
b = 20.0 * u.cm #<< - section width
h = 10.0 * u.cm #<< - section height

#! Result calculation:
A = b * h #%requ - section area
Sigma = (F / A).asUnit(u.Pa) #%requ - stress value

#! So for section dimensions var_b , var_h and force var_F we get stress value val_Sigma.

Loge output report:

Stress calculation

Input data:

F = 1000.0 [N] - force value

b = 20.0 [cm] - section width

h = 10.0 [cm] - section height

Result calculation:

A = b * h = 200.0 [cm2] - section area

Sigma = F / A = 50000.0 [Pa] - stress value

So for section dimensions b = 20.0 [cm] , h = 10.0 [cm] and force F = 1000.0 [N] we get stress value 50000.0 [Pa] .

Foundation dynamic analysis¶

Python code:

# -*- coding: utf-8 -*-

import matplotlib.pyplot as plt
import numpy as np

import strupy.units as u
from unum.units import um
u.um = um

import math

#! ### Fundament blokowy po wentylator

show = True #<<< (zobacz podstawy teoretyczne)
if show:
    #%img action_foundation_fig_1.png
    None

#! ---

#! ### Dane wejściowe
#! Geometria fundamentu
a_f = 3.8 *  u.m #<< - szerokość fundamentu
b_f = 5.20* u.m #<< - dlugość fundamentu
h_f = 1.4 * u.m #<< - wysokość fundamentu
m_f = a_f * b_f * h_f * 2100 * u.kg / u.m3 #! - masa fundamentu betonowego

#! Dane urzadzenia
m_u = 4640.0 * u.kg #<< - masa urzadzenia
n_m = 991.0 #<< - predkość obrotowa [rpm]
n_m / 60.0 #%requ - częstość w [Hz]
omega_m = n_m / (60.0 * u.s) * 2 * math.pi #! - predkość obrotowa [rad/s]
h_u = 3.2 * u.m #<< - wysokość srodka cęźkośći maszyny wzgl. spodu fund
P_d = 1.57 * u.kN #<< - siła dynamiczna
h_s = 3.2 * u.m #<< - wysokość przyłozenia siły wzgl. spodu fundamentu

#! Podloże gruntowe
C_o = 18.0 * u.MPa / u.m #<< - dynamiczny wsp. podloża (wg. tab.1 PN)

#! ---
#! ### Obliczenia
M_c = m_u + m_f #! - masa calkowita
F = a_f * b_f #! - powierzchnia podstawy fundamentu
p = M_c / F * 10.0 * u.N / u.kg
p = p.asUnit(u.kPa) #! - nacisk statyczny na grunt
#! Współczynniki sztywności podłoża
C_z = C_o * (1 + 2*(a_f + b_f) / (u.m**-1 * F)) * (p/(20*u.kPa))**0.5 #! - dynamiczny współczynnik podłoza
C_x = 0.7 * C_z #! - ddynamiczny współczynnik podłoza
C_fi = C_o * (1 + 2*(a_f + 3 * b_f) / (u.m**-1 * F)) * (p/(20*u.kPa))**0.5 #! - dynamiczny współczynnik podłoża

#! Sztywność podłoża
K_z = C_z * F
K_z = K_z.asUnit(u.kN / u.m) #! - sztywność kier. z

K_x = C_x * F
K_x = K_x.asUnit(u.kN / u.m) #! - sztywność kier. x

I_y = a_f**3 * b_f / 12 #! - moment bezwladności podstawy

K_fi = I_y * C_fi
K_fi = K_fi.asUnit(u.kNm) #! - sztywność na obrót

z_k = (m_f * h_f/2 + m_u * h_u) / M_c #! - wysokość środka cięźkośći układu

#! Połozenie punktu kontroli drgań
zp = 3.2 * u.m #<< wysokość od podstawy fundamentu
xp = 0.0 * u.m #<< odleglość w poziomie od osi fundamentu

delta = 0.1 #<< - błąd szacowania czestotliwości degań własnych
#! ### Kątowa częstość drgań pionowych

Lambda_z = (K_z / M_c)**0.5 #%requ - w [rad/s] (czestość maszyny var_omega_m)
Lambda_zmin = Lambda_z * (1 - delta) #%requ - dolna granica szacowanej czestotliwości
Lambda_zmax = Lambda_z * (1 + delta) #%requ - górna granica szacowanej czestotliwości
#! Szacowana czestość rezonansowa w przedziale val_Lambda_zmin - val_Lambda_zmax

A_oz = P_d / K_z
A_oz =A_oz.asUnit(u.um)#! - przemieszczenie pionowe pod dzialaniem statycznym sily Pd

#! ### Katowa czestość drgan wahadlowych
Lambda_fi = (K_x * K_fi /( M_c * (K_x * z_k**2 + K_fi)) )**0.5 #! - w [rad/s] (czestość maszyny var_omega_m)
Lambda_fimin = Lambda_fi * (1 - delta) #%requ - dolna granica szacowanej czestotliwości
Lambda_fimax = Lambda_fi * (1 + delta) #%requ - górna granica szacowanej czestotliwości
#! Szacowana czestość rezonansowa w przedziale val_Lambda_fimin - val_Lambda_fimax

A_o1 = P_d / K_x * (1 + K_x * h_s * zp / K_fi)
A_o1 = A_o1.asUnit(u.um)#! - przemieszczenie poziome pod dzialaniem statycznym sily Pd

A_o2 = P_d / K_fi * h_s * xp
A_o2 = A_o2.asUnit(u.um)#! - przemieszczenie pionowe pod dzialaniem statycznym sily Pd

#! ### Rodzaj strojenia
#! Ze wzgledu na czestotliwość var_Lambda_z
if  Lambda_zmin < omega_m < Lambda_zmax:
    #! ####!!!Praca w strefie rezonansu var_Lambda_zmin < var_omega_m < var_Lambda_zmax !!!
    None
if  omega_m < Lambda_zmin:
    None
    #! OK - Strojenie wysokie var_omega_m < var_Lambda_zmin
if  Lambda_zmax < omega_m:
    None
    #! OK - Strojenie niskie var_Lambda_zmax < var_omega_m

#! Ze wzgledu na czestotliwość var_Lambda_fi
if  Lambda_fimin < omega_m < Lambda_fimax:
    #! ####!!!Praca w strefie rezonansu var_Lambda_fimin < var_omega_m < var_Lambda_fimax !!!
    None
if  omega_m < Lambda_fimin:
    None
    #! OK - Strojenie wysokie var_omega_m < var_Lambda_fimin
if  Lambda_fimax < omega_m:
    None
    #! OK - Strojenie niskie var_Lambda_fimax < var_omega_m

show = True #<<< (zobacz wykres strojenia)
if show:
    x_max = 1.2*max(omega_m, Lambda_zmax, Lambda_fimax).asNumber()

    y1 = np.array([0, 0, 0.3, 0.3, 0, 0])
    x1 = np.array([0, Lambda_zmin.asNumber(), Lambda_zmin.asNumber(), Lambda_zmax.asNumber(), Lambda_zmax.asNumber(), x_max])
    x1a = np.array([0, Lambda_z.asNumber(), Lambda_z.asNumber(), Lambda_z.asNumber(), Lambda_z.asNumber(), x_max])

    y2 = y1
    x2 = np.array([0, Lambda_fimin.asNumber(), Lambda_fimin.asNumber(), Lambda_fimax.asNumber(), Lambda_fimax.asNumber(), x_max])
    x2a = np.array([0, Lambda_fi.asNumber(), Lambda_fi.asNumber(), Lambda_fi.asNumber(), Lambda_fi.asNumber(), x_max])

    xm1 = np.arange(0.0, omega_m.asNumber(), 10.0)
    ym1 = 1.0 * (xm1 / omega_m.asNumber())**2
    ym2 = np.array([0, 0, 1.0, 0, 0])
    xm2 = np.array([0, omega_m.asNumber(), omega_m.asNumber(), omega_m.asNumber(), x_max])

    plt.figure(1)
    plt.fill(x1, y1, alpha=0.3, label='szacowany obszar Lambda_z', color='blue')
    plt.plot(x1a, y1, label='Lambda_z', color='blue')


    plt.fill(x2, y2, alpha=0.3, label='szacowany obszar Lambda_fi', color='green')
    plt.plot(x2a, y2, label='Lambda_fi', color='green')


    plt.plot(xm1, ym1, label='sila wymuszajaca', color='yellow')
    plt.plot(xm2, ym2, label='omega_m', color='red')
    plt.legend()
    plt #%plt
    #plt.show()
    plt.clf()

#! ### Naprezenia pod fundamentem
p #! - nacisk statyczny na grunt od fundamentu i maszyny
sigma_pov = P_d / F
sigma_pov = sigma_pov.asUnit(u.kPa)#! - statyczny nacisk od sily wymuszajacej pionowo

sigma_poh = (P_d * h_s)/(a_f**2 * b_f / 6)
sigma_poh = sigma_poh.asUnit(u.kPa)#! - statyczny nacisk od sily wymuszajacej poziomo


#! ### Amplitudy drgań

gamma = 0.13 #! - tłumienie gruntu

#!--------------------------------------------------------------------------------
#! ###Praca na pełnych obrotach val_omega_m
#! Dopuśćzalne amplitudy drgań dla val_omega_m
omega_m / (2*math.pi) * 60.0 #%requ x [obr]
show = True #<<< (zobacz wykres PN)
if show:
    #%img action_foundation_fig_3.png
    None
A_xdop = 110.0 * u.um    #<< - poziomych
A_zdop = 70.0 * u.um   #<< - pionowych
#! #### Drgania pionowe
if omega_m < Lambda_zmin:
    Lambda_zmod = Lambda_zmin #%requ strojenie wysokie
if omega_m > Lambda_zmax:
    Lambda_zmod = Lambda_zmax #%requ strojenie niskie
if Lambda_zmin <= omega_m <= Lambda_zmax:
    Lambda_zmod = omega_m #%requ praca w strefie rezonansu!!!
    Lambda_zmod = Lambda_zmod * 0.999

eta_z = omega_m / Lambda_zmod #%requ

tlumienie = False
if 0.75<eta_z<1.25:
    #! fundament pracuje w strefie rezonanasu
    tlumienie = True #<<< - dodatkwowo uzglednic tłumienie var_gamma (nie zalecane)

if tlumienie:
    ni = 1 / ((1 - eta_z**2)**2 +  gamma**2)**0.5 #%requ - wzmocnienie
else:
    ni = 1 / ((1 - eta_z**2)**2)**0.5 #%requ - wzmocnienie

A_dz = ni * A_oz   #%requ - Amplituda drgań pionowych

#! #### Drgania wahadłowe
if omega_m < Lambda_fimin:
    Lambda_fimod = Lambda_fimin #%requ strojenie wysokie
if omega_m > Lambda_fimax:
    Lambda_fimod = Lambda_fimax #%requ strojenie niskie
if Lambda_fimin <= omega_m <= Lambda_fimax:
    Lambda_fimod = omega_m #%requ praca w strefie rezonansu!!!
    Lambda_fimod = Lambda_fimod * 0.999

eta_fi = omega_m / Lambda_fimod #%requ

tlumienie = False
if 0.75<eta_fi<1.25:
    #! fundament pracuje w strefie rezonanasu
    tlumienie = False #<<< - dodatkwowo uzglednic tłumienie var_gamma (nie zalecane)

if tlumienie:
    ni = 1 / ((1 - eta_fi**2)**2 +  gamma**2)**0.5 #%requ - wzmocnienie
else:
    ni = 1 / ((1 - eta_fi**2)**2)**0.5 #%requ - wzmocnienie
A_do1 = ni * A_o1   #%requ - amplituda drgań poziomych
A_do2 = ni * A_o2   #%requ - amplituda drgań pionowych
#! #### Drgania całkowite
A_x = A_do1 #%requ - całkowita amplituda drgań poziomych var_A_xdop
A_z = A_dz + A_do2 #%requ - całkowita amplituda drgań pionowych var_A_zdop

if (A_x > A_xdop) or (A_z > A_zdop):
    None
    #! ### !! Przekroczone amplitudy drgań !!

if Lambda_zmax < omega_m:
    #!--------------------------------------------------------------------------------
    #! ### Rezonans przejśćiowy dla var_Lambda_zmax (drgania pionowe)
    omega_r = Lambda_zmax #!
    omega_r / (2*math.pi) * 60.0 #%requ x [obr]
    #! Dopuśćzalne amplitudy drgań dla val_omega_r
    show = True #<<< (zobacz wykres PN)
    if show:
        #%img action_foundation_fig_3.png
        None
    A_xdop = 120.0 * u.um #<< - poziomych
    A_zdop = 80.0 * u.um #<< - pionowych

    P_dred = P_d * (omega_r / omega_m)**2 #%requ -siła dynamiczna dla obrotów val_omega_r
    #! Drgania pionowe
    eta_z = omega_r / (Lambda_z) #%requ
    ni = 1 / ((1 - eta_z**2)**2 +  gamma**2)**0.5 #%requ - wzmocnienie
    A_dz = P_dred / P_d * ni * A_oz   #%requ - Amplituda drgań pionowych

    #! Drgania wahadłowe
    eta_fi = omega_r / (1.25* Lambda_fi) #%requ
    ni = 1 / ((1 - eta_fi**2)**2 +  gamma**2)**0.5 #%requ - wzmocnienie
    A_do1 = P_dred / P_d * ni * A_o1   #%requ - amplituda drgań poziomych
    A_do2 = P_dred / P_d * ni * A_o2   #%requ - amplituda drgań pionowych
    #! Drgania całkowite
    A_x = A_do1 #%requ - całkowita amplituda drgań poziomych var_A_xdop
    A_z = A_dz + A_do2 #%requ - całkowita amplituda drgań pionowych var_A_zdop

    if (A_x > A_xdop) or (A_z > A_zdop):
        None
        #! ### !! Przekroczone amplitudy drgań !!

if Lambda_fimax < omega_m:
    #!--------------------------------------------------------------------------------
    #! ### Rezonans przejśćiowy dla Lambda_fimax (drgania wahadłowe)
    omega_r = Lambda_fi #!
    omega_r / (2*math.pi) * 60.0 #%requ x [obr]
    #! Dopuśćzalne amplitudy drgań dla val_omega_r
    show = True #<<< (zobacz wykres PN)
    if show:
        #%img action_foundation_fig_3.png
        None
    A_xdop = 140.0 * u.um  #<< - poziomych
    A_zdop = 100.0 * u.um  #<< - pionowych

    P_dred = P_d * (omega_r / omega_m)**2 #%requ -siła dynamiczna dla obrotów val_omega_r
    #! Drgania pionowe
    eta_z = omega_r / (0.75 * Lambda_z) #%requ
    ni = 1 / ((1 - eta_z**2)**2 +  gamma**2)**0.5 #%requ - wzmocnienie
    A_dz = P_dred / P_d * ni * A_oz   #%requ - Amplituda drgań pionowych

    #! Drgania wahadłowe
    eta_fi = omega_r / (Lambda_fi) #%requ
    ni = 1 / ((1 - eta_fi**2)**2 +  gamma**2)**0.5 #%requ - wzmocnienie
    A_do1 = P_dred / P_d * ni * A_o1   #%requ - amplituda drgań poziomych
    A_do2 = P_dred / P_d * ni * A_o2   #%requ - amplituda drgań pionowych
    #! Drgania całkowite
    A_x = A_do1 #%requ - całkowita amplituda drgań poziomych var_A_xdop
    A_z = A_dz + A_do2 #%requ - całkowita amplituda drgań pionowych var_A_zdop

    if (A_x > A_xdop) or (A_z > A_zdop):
        None
        #! ### !! Przekroczone amplitudy drgań !!

#! ---
show = True #<<< (pomocnicze - zobacz wykres wsp. dynamicznego)
if show:
    #%img action_foundation_fig_2.png
    None

Loge output report:

Fundament blokowy po wentylator¶

☑ (zobacz podstawy teoretyczne)

_images/action_foundation_fig_1.png Alt text

Dane wejściowe¶

Geometria fundamentu

a_f = 3.80 [m] - szerokość fundamentu

b_f = 5.20 [m] - dlugość fundamentu

h_f = 1.40 [m] - wysokość fundamentu

m_f = 58094.40 [kg] - masa fundamentu betonowego

Dane urzadzenia

m_u = 4640.00 [kg] - masa urzadzenia

n_m = 991.0 - predkość obrotowa [rpm]

n_m / 60.0 = 16.5167 - częstość w [Hz]

omega_m = 103.78 [1/s] - predkość obrotowa [rad/s]

h_u = 3.20 [m] - wysokość srodka cęźkośći maszyny wzgl. spodu fund

P_d = 1.57 [kN] - siła dynamiczna

h_s = 3.20 [m] - wysokość przyłozenia siły wzgl. spodu fundamentu

Podloże gruntowe

C_o = 18.00 [MPa/m] - dynamiczny wsp. podloża (wg. tab.1 PN)

Obliczenia¶

M_c = 62734.40 [kg] - masa calkowita

F = 19.76 [m2] - powierzchnia podstawy fundamentu

p = 31.75 [kPa] - nacisk statyczny na grunt

Współczynniki sztywności podłoża

C_z = 43.34 [MPa/m] - dynamiczny współczynnik podłoza

C_x = 30.34 [MPa/m] - ddynamiczny współczynnik podłoza

C_fi = 67.21 [MPa/m] - dynamiczny współczynnik podłoża

Sztywność podłoża

K_z = 856345.26 [kN/m] - sztywność kier. z

K_x = 599441.68 [kN/m] - sztywność kier. x

I_y = 23.78 [m4] - moment bezwladności podstawy

K_fi = 1598099.91 [kNm] - sztywność na obrót

z_k = 0.88 [m] - wysokość środka cięźkośći układu

Połozenie punktu kontroli drgań

zp = 3.20 [m] wysokość od podstawy fundamentu

xp = 0.00 [m] odleglość w poziomie od osi fundamentu

delta = 0.1 - błąd szacowania czestotliwości degań własnych

Kątowa częstość drgań pionowych¶

Lambda_z = (K_z / M_c)^0.5 = 116.83 [1/s] - w [rad/s] (czestość maszyny omega_m = 103.78 [1/s] )

Lambda_zmin = Lambda_z * (1 - delta) = 105.15 [1/s] - dolna granica szacowanej czestotliwości

Lambda_zmax = Lambda_z * (1 + delta) = 128.52 [1/s] - górna granica szacowanej czestotliwości

Szacowana czestość rezonansowa w przedziale 105.15 [1/s] - 128.52 [1/s]

A_oz = 1.83 [um] - przemieszczenie pionowe pod dzialaniem statycznym sily Pd

Kątowa czestość drgan wahadlowych¶

Lambda_fi = 85.94 [1/s] - w [rad/s] (czestość maszyny omega_m = 103.78 [1/s] )

Lambda_fimin = Lambda_fi * (1 - delta) = 77.35 [1/s] - dolna granica szacowanej czestotliwości

Lambda_fimax = Lambda_fi * (1 + delta) = 94.54 [1/s] - górna granica szacowanej czestotliwości

Szacowana czestość rezonansowa w przedziale 77.35 [1/s] - 94.54 [1/s]

A_o1 = 12.68 [um] - przemieszczenie poziome pod dzialaniem statycznym sily Pd

A_o2 = 0.00 [um] - przemieszczenie pionowe pod dzialaniem statycznym sily Pd

Rodzaj strojenia¶

Ze wzgledu na czestotliwość Lambda_z = 116.83 [1/s]

OK - Strojenie wysokie omega_m = 103.78 [1/s] < Lambda_zmin = 105.15 [1/s]

Ze wzgledu na czestotliwość Lambda_fi = 85.94 [1/s]

OK - Strojenie niskie Lambda_fimax = 94.54 [1/s] < omega_m = 103.78 [1/s]

☑ (zobacz wykres strojenia)

_images/action_foundation_tmp_seepy_1.png Alt text

Naprezenia pod fundamentem¶

p = 31.75 [kPa] - nacisk statyczny na grunt od fundamentu i maszyny

sigma_pov = 0.08 [kPa] - statyczny nacisk od sily wymuszajacej pionowo

sigma_poh = 0.40 [kPa] - statyczny nacisk od sily wymuszajacej poziomo

Amplitudy drgań¶

gamma = 0.13 - tłumienie gruntu

Praca na pełnych obrotach `103.78 [1/s]`¶

Dopuśćzalne amplitudy drgań dla 103.78 [1/s]

omega_m / (2*pi) * 60.0 = 991.00 [1/s] x [obr]

☑ (zobacz wykres PN)

_images/action_foundation_fig_3.png Alt text

A_xdop = 110.00 [um] - poziomych

A_zdop = 70.00 [um] - pionowych

Drgania pionowe¶

Lambda_zmod = Lambda_zmin = 105.15 [1/s] strojenie wysokie

eta_z = omega_m / Lambda_zmod = 0.99 []

fundament pracuje w strefie rezonanasu

☑ - dodatkwowo uzglednic tłumienie gamma = 0.13 (nie zalecane)

ni = 1 / ((1 - eta_z^2)^2 + gamma^2)^0.5 = 7.54 [] - wzmocnienie

A_dz = ni * A_oz = 13.83 [um] - Amplituda drgań pionowych

Drgania wahadłowe¶

Lambda_fimod = Lambda_fimax = 94.54 [1/s] strojenie niskie

eta_fi = omega_m / Lambda_fimod = 1.10 []

fundament pracuje w strefie rezonanasu

☐ - dodatkwowo uzglednic tłumienie gamma = 0.13 (nie zalecane)

ni = 1 / ((1 - eta_fi^2)^2)^0.5 = 4.88 [] - wzmocnienie

A_do1 = ni * A_o1 = 61.82 [um] - amplituda drgań poziomych

A_do2 = ni * A_o2 = 0.00 [um] - amplituda drgań pionowych

Drgania całkowite¶

A_x = A_do1 = 61.82 [um] - całkowita amplituda drgań poziomych A_xdop = 110.00 [um]

A_z = A_dz + A_do2 = 13.83 [um] - całkowita amplituda drgań pionowych A_zdop = 70.00 [um]

Rezonans przejśćiowy dla Lambda_fimax (drgania wahadłowe)¶

omega_r = 85.94 [1/s]

omega_r / (2*pi) * 60.0 = 820.68 [1/s] x [obr]

Dopuśćzalne amplitudy drgań dla 85.94 [1/s]

☑ (zobacz wykres PN)

_images/action_foundation_fig_3.png Alt text

A_xdop = 140.00 [um] - poziomych

A_zdop = 100.00 [um] - pionowych

P_dred = P_d * (omega_r / omega_m)^2 = 1.08 [kN] -siła dynamiczna dla obrotów 85.94 [1/s]

Drgania pionowe

eta_z = omega_r / (0.75 * Lambda_z) = 0.98 []

ni = 1 / ((1 - eta_z^2)^2 + gamma^2)^0.5 = 7.38 [] - wzmocnienie

A_dz = P_dred / P_d * ni * A_oz = 9.28 [um] - Amplituda drgań pionowych

Drgania wahadłowe

eta_fi = omega_r / (Lambda_fi) = 1.00 []

ni = 1 / ((1 - eta_fi^2)^2 + gamma^2)^0.5 = 7.69 [] - wzmocnienie

A_do1 = P_dred / P_d * ni * A_o1 = 66.89 [um] - amplituda drgań poziomych

A_do2 = P_dred / P_d * ni * A_o2 = 0.00 [um] - amplituda drgań pionowych

Drgania całkowite

A_x = A_do1 = 66.89 [um] - całkowita amplituda drgań poziomych A_xdop = 140.00 [um]

A_z = A_dz + A_do2 = 9.28 [um] - całkowita amplituda drgań pionowych A_zdop = 100.00 [um]

☑ (pomocnicze - zobacz wykres wsp. dynamicznego)

_images/action_foundation_fig_2.png Alt text

Video examples¶

Here you can find some youtube videos for Loge.

Loge python notebook¶

About Loge¶

What Loge is¶

Mission¶

Stage of development¶

Source code¶

License¶

Development team¶

Installing¶

Loge requirements¶

How to run Loge?¶

OS compatibility¶

Features¶

Comments¶

One line comment¶

Multi line comment¶

Variable with line comment¶

Calling variable value in Loge comment¶

Python code¶

Showing python code used in your script¶

Images from file¶

Showing image in report¶

Showing dxf file¶

Embedding image from clipboard¶

Image from PIL / PILLOW¶

Displaying PIL.Image instance in report¶

Matplotlib¶

Showing Matplotlib figure¶

Anastruct¶

Showing Anastruct figure¶

Tabulate table¶

Showing Tabulate table¶

LaTex¶

Rendering LaTex syntax from comment¶

Rendering python code as LaTex syntax¶

Rendering LaTex syntax from python string¶

SVG graphic¶

Rendering SVG syntax from python string¶

Rendering SVG svgwrite.drawing instance from svgwrite package¶

Raport interaction¶

Interactive python variable changing¶

Interactive python variable selecting from list¶

Mathematical expressions and equations¶

Loge timer¶

Saveas with dependences¶

Code editor Greek letters usage¶

Loge in action¶

Circle area¶

Circle Area calculation¶

Matplotlib figure¶

SI unit calculation¶

Foundation dynamic analysis¶

Fundament blokowy po wentylator¶

Dane wejściowe¶

Obliczenia¶

Kątowa częstość drgań pionowych¶

Kątowa czestość drgan wahadlowych¶

Rodzaj strojenia¶

Naprezenia pod fundamentem¶

Amplitudy drgań¶

Praca na pełnych obrotach 103.78 [1/s]¶

Drgania pionowe¶

Drgania wahadłowe¶

Drgania całkowite¶

Rezonans przejśćiowy dla Lambda_fimax (drgania wahadłowe)¶

Video examples¶

Indices and tables¶

Rendering SVG `svgwrite.drawing` instance from `svgwrite` package¶

Praca na pełnych obrotach `103.78 [1/s]`¶
